Tesunho TH-588 WCDMA /GSM walkie talkie with SIM card gps two way radio wifi internet

  • >=2 Pieces
    $146.00
Color:
Shipping:
Support Sea freight
Lead Time:
Quantity(Pieces) 1 - 10 >10
Est. Time(days) 7 Negotiable
Customization:
Customized logo (Min. Order: 500 Pieces)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Fujian, China
Brand Name:
tesunho
Model Number:
TH-588
Type:
Handheld
Frequency Range:
no limited
Talk Range:
no limited
Storage Channel:
no limited
Dimensions:
40*53*135mm
Colour:
black
BATTERY CAPACITY:
4400MAH
weight (incl.battery ):
340grams
Name:
WIFI WALKIE TALKIE
Packaging & Delivery
Packaging Details
GIFT BOX/PC or can be customized by your requirement
Lead Time :
Quantity(Pieces) 1 - 10 >10
Est. Time(days) 7 To be negotiated
Video Description

 Product description:

1) TESUNHO CDMA/WCDMA/GSM WALKIE TALKIE

 .jpg

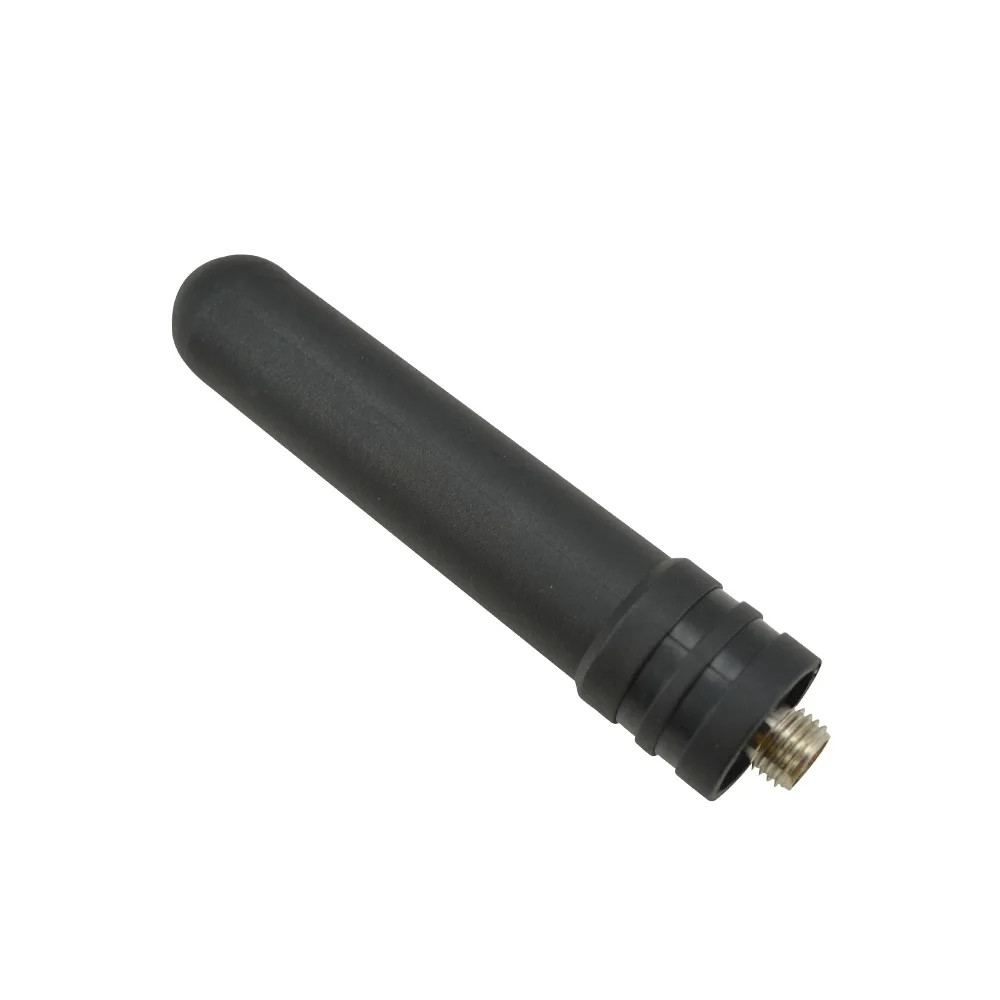

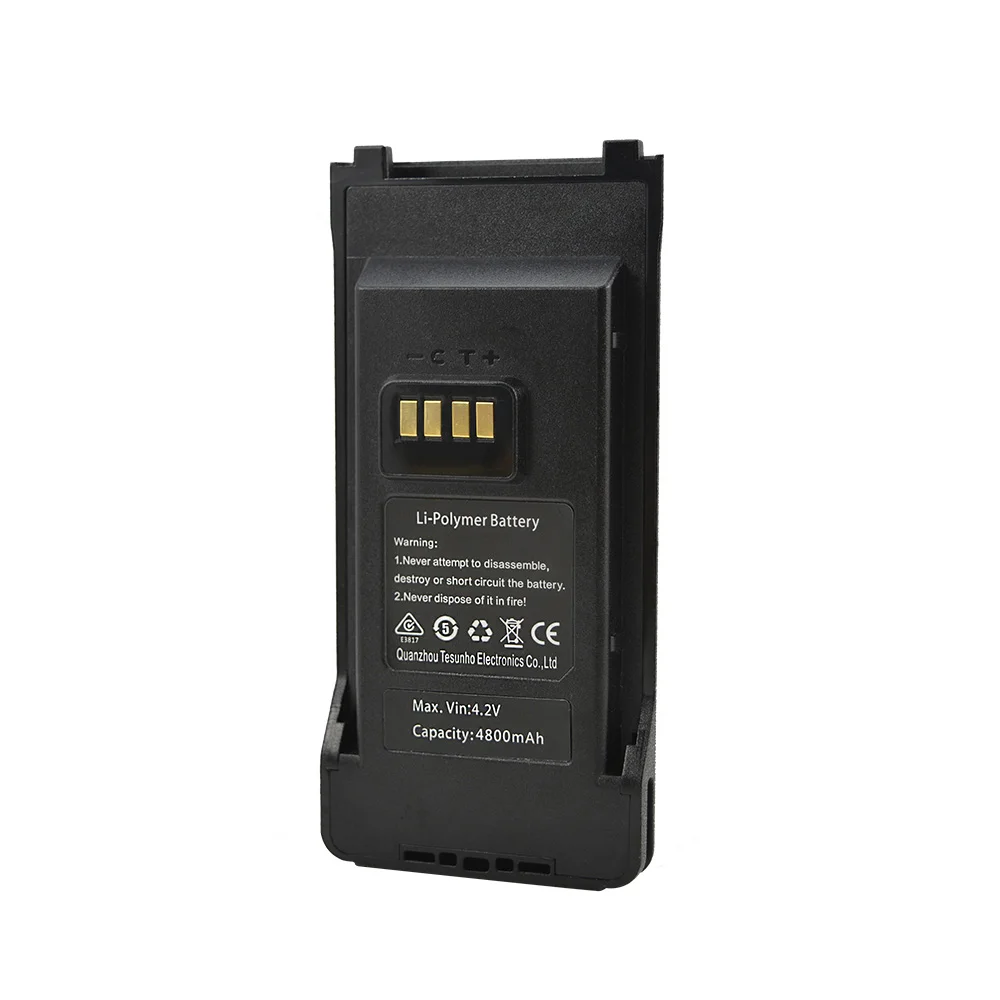

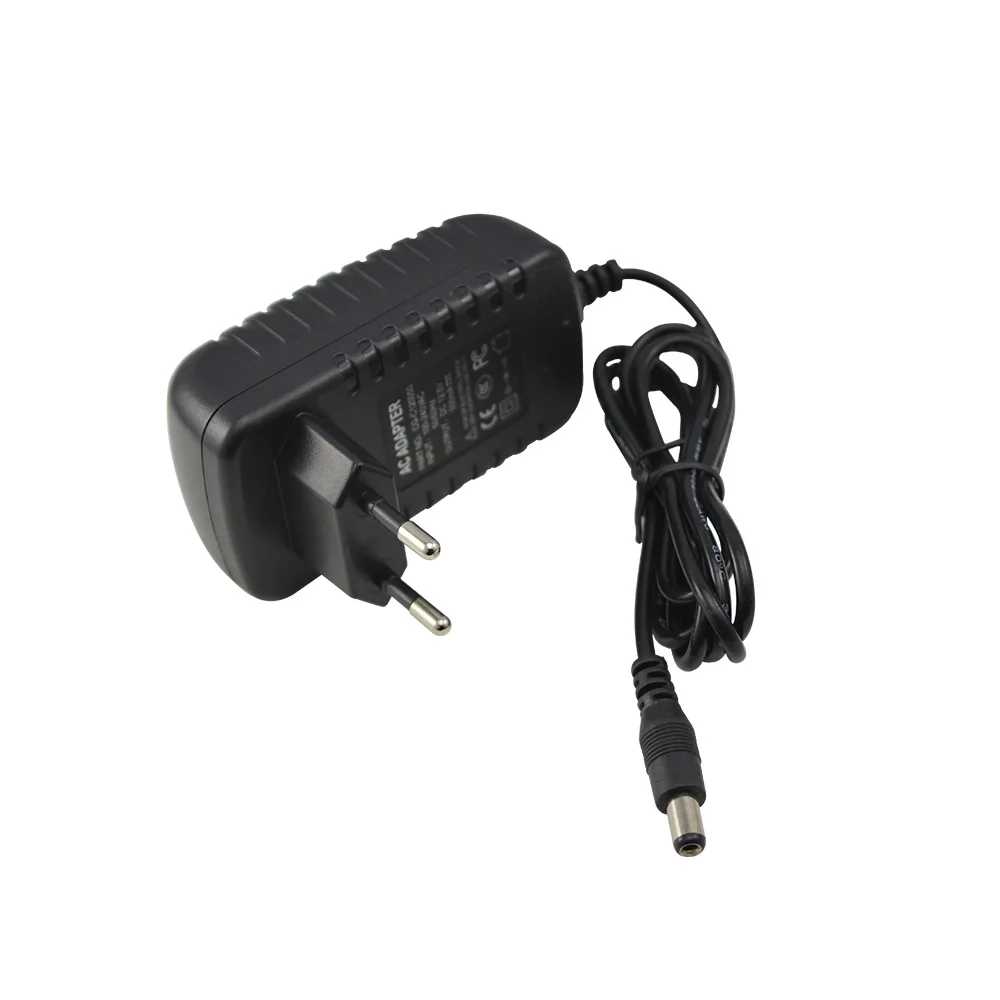

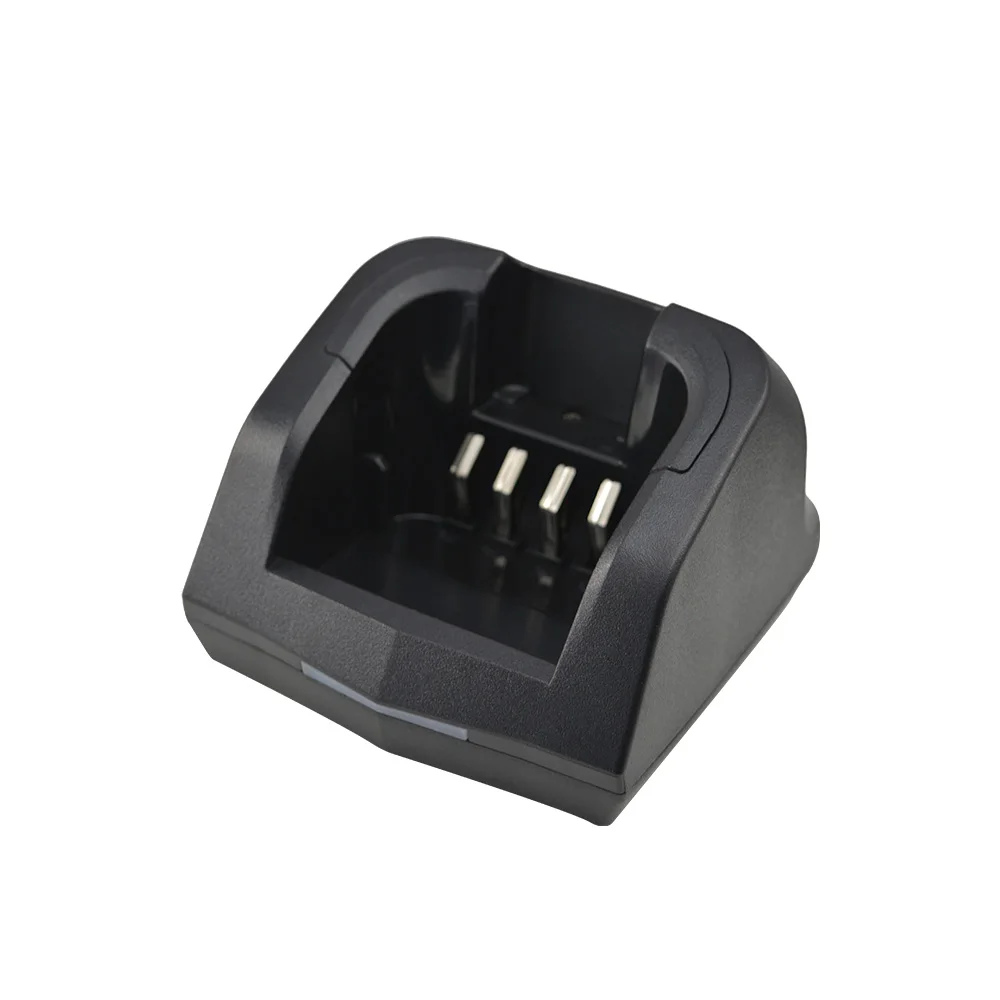

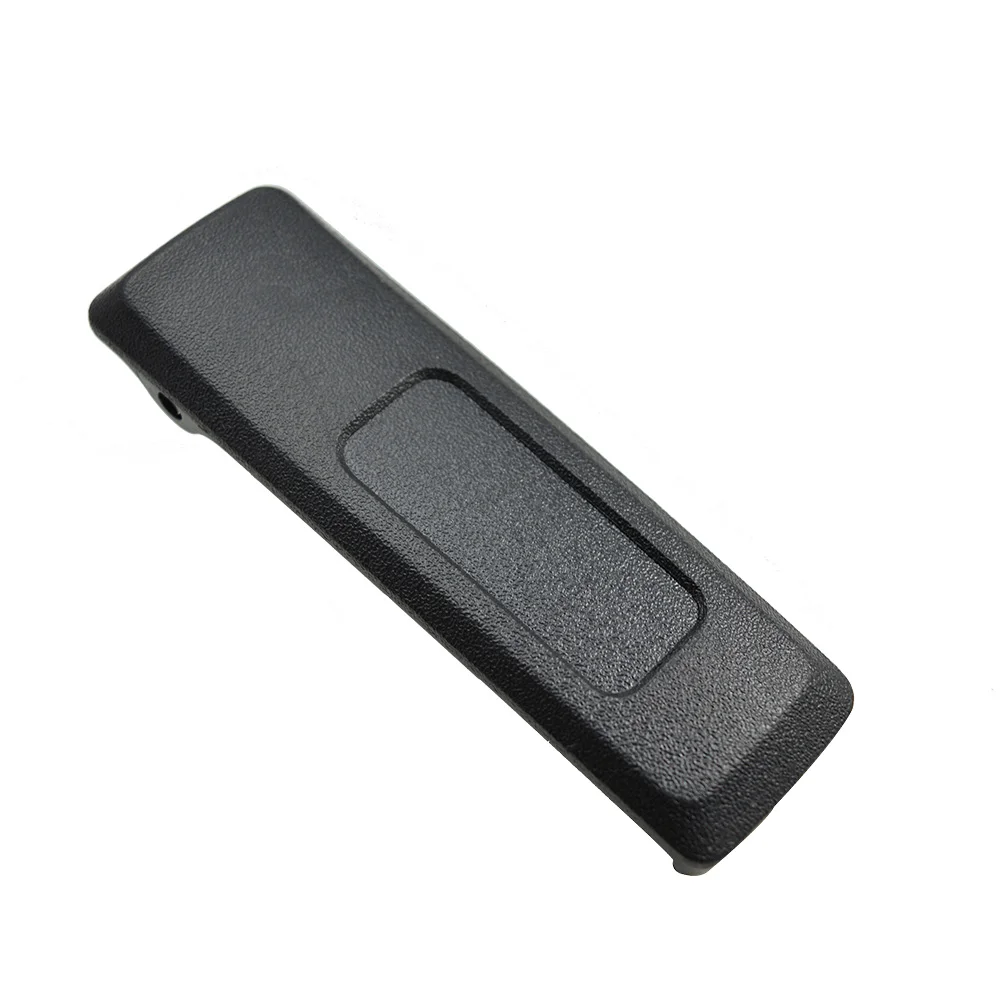

Standard Package including: Clip-battery-adapter-antenna-charger








tesunho_walkie_talkie_main_features



A. one on one talking

B. one to many talking

C. Monitor

D. TOT

E. Phone call

F. GPS

G. SOS

H. Friend list



How to operate the Wifi internet GPS walkie talkie?

Step 1: insert SIM card from your local supplier

Step 2:  usually we help you to set radio user accounts before shipping

Step 3:  Push to talk



100 mile walkie talkie main features



Clear Loud Sound
LCD Display(signal strong, battery capacity,date, time,Incoming and outgoing cluster and personal equipment)
GPS (optional)
Charger split design,Charger, direct charger on the unit,car charger,power bank
All calls, group calls and selective calls
compatible CDMA 2000   1X
Low battery indicator,lcd display
flashlight
account number and function set software.
Texting message,Voice broadcast
Timeout timer



100 mile walkie talkie specification



Technique Specification
General
Frequency rangeCDMA 2000 1X    800MHz
Temperature -30 ~+ 75
Operating Voltage3.3V-4.25V
Standard: 3.8V
Standard power consumptionStandby current(USB&UART Suspend) : 5mA@
RX:-75dBm
Resting current (USB&UART Active) : 5mA@ RX: -75DbM
Average operating current: 120mA@ RX: -75dBm
Max. current: 800mA@ RX: 104dBm
Max. transmitter power 23dBm-25dBm@ All up bits
Sensitivity -106dBm
Module
Chipublox UBX-G7020-KT
Frequency rangeL1, 1575.42MHz
ProtocolNEA 0183  V2.3
GALTLEO L1 open service (with upgrade) Default: GGA, GSA, GSV, RMC
Support: VTG, GLL, TXT ublox binary and NMEA Command
Baud rate1200, 4800, 9600, 19200, 38400, 57600, 112500 bps
Channel56
Internal ROM3Mbit of ROM and 2Mbit of RAM
SensitivityTrack :-162dBm  Capture:-160dBm  cold start -148dBm
Cold StartAverage 29 second
Warm StartAverage 28 second
Hot StartAverage 1 second
Accuracy Horizontal Position:  Autonomous< 2.5m a average,                                         SBAS<2.0 average
Velocity: 0.1 m/s
Timepluse signal : RMS 30 ns
Max Height18000m
Max Speed515m/s
Max Acceleration<<4G
Update frequency1-10 Hz
A-GPS Assist Now on-line and off-line
