TESUNHO TH-UV7R affordable brand Walkie Talkie with Repeater shift direction

FOB Reference Price:Get Latest Price
$21.00 - $25.00 / Piece | 2 Piece/Pieces (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Fujian, China
Brand Name:
TESUNHO
Model Number:
TH-UV7R
Type:
Handheld
Frequency Range:
136-174MHz/245-246MHz/400-520MHZ, 136-174MHz/ 245-246MHz /400-520MHz
Talk Range:
10km
Storage Channel:
2*128 channels
Dimensions:
100 x 52 x 32 mm
Operating Voltage:
DC 7.2V
Frequency Stability:
±2.5ppm
Antenna:
High gain antenna
Dualband Amateurfunk Color:
Black Red Yellow Army Khaki Camouflage
Antenna Impedance:
50Ω
Occassion:
Amateur users, tour guides and business usage
Mode of operation:
Simple or semi-duplex
Advantage:
good for promotion on dealers and distributors
Weight:
250g(including battery, antenna)
Supply Ability
Supply Ability:
3000 Carton/Cartons per Month
Packaging & Delivery
Packaging Details
GIFT BOX/PC 20/40PCS/CTN
can be customized by your requirement
Port
SHANGHAI/HANGZHOU
Lead Time :
7 days for bulk 100-500PCS

 TESUNHO_WALKIE_TALKIE_IMAGE



TESUNHO TH-UV7R affordable brand Walkie Talkie with

Repeater shift direction



tesunho_walkie_talkie_main_features



Dual band, dual display, dual standby

A/B band independent operation

128 groups channels

FM radio and 25 stations

Wide/Narrow Band(25kHz/12.5kHz)

0~9 grades VOX selectable

Chinese/English voice prompt

CTCSS/DCS and scanning

1750Hz tone

PTT & ANI ID

Priority transmit selectable

0~9 grades squelch level setting

LED display mode

Keypad beeper setting

Transmit over beeper

Dual watch/monitor

Receive saving function

Auto keypad lock

Power-on display

Battery power voltage

Power-on message

Repeater offset function

Channel name display and setting

Reapter shift direction

VFO step function

Shortcut menu operation mode

Emergency Alarm

DTMF encoder & decoder(optional)

Remote skill/stun/activate(optional)

High/Low TX power selectable

Busy channel lock-out(BCLO)

Transmitter time-out timer(TOT)

Voice companding

Tri-color background light selectable

PC programmable

Wire clone



























































































tesunho_walkie_talkie_specification



Item number

TH-UV7R

General

Frequency Range

70-108MHz(FM Receive only)

                 136-174MHz

245-246MHz

400-520MHz

Channel No.

128*2

Frequency Stability

±2.5ppm

Antenna

High gain antenna

Antenna Impedance

50Ω

Operating Voltage

DC 7.2V

Mode of operation

Simple or semi-duplex

Dimension(W x H x D)

100 x 52 x 32 mm

Weight

250g(including battery, antenna)

Transmitter

Output power

≥4W(H)   ≥0.5W(L)

Modulation Mode

16kΦF3E / 11kΦF3E

Maximum deviation

<5kHz(Wide) / <2.5kHz(Narrow)

Spurious Radiation

<7μW

Adjacent Ch. power

≤-65dB(Wide) / ≤-60dB(Narrow)

Pre-emphasis characteristics

6dB

Current

≤1.6A(5W)

CTCSS/DCS deviation

0.5±0.1kHz(Wide) / 0.3±0.1kHz(Narrow)

Intermediation sensitivity

8-12mv

Intermediation distortion

<10%

 Receiver

RF Sensitivity

-122dbm(12db SINAD)

Audio power

≥0.5W

Audio Distortion

≤10%

Intermediation

≤-65dB(Wide) / ≤-60dB(Narrow)

Selectivity

≤-65dB(Wide) / ≤-60dB(Narrow)

Spurious Rejection

≤-65dB

Blocking

≥85dBuv/m



tesunho_walkie_talkie_standard_accessories



a letter to the buyer

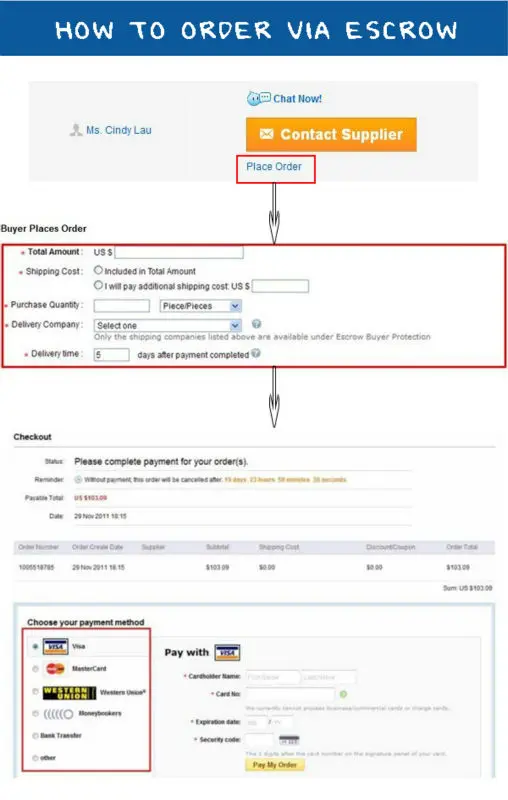

how to order via escrow 3-final



tesunho_walkie_talkie_shipment_payment



 tesunho_walkie_talkie_certifications

tesunho_walkie_talkie_logo

tesunho_walkie_talkie_our_enterprise



Professional

10 years Electronics Design Experience.

Powerful and reliable R&D team.

Effective

Instant respond to customer's enquiry.

Control design and productive cost,cost-effective.

Trusted

Never reveal customers design.

Exclusivity is guaranteed!

To-be-perfect

Because of all the above.

Target Customer

Who has distinctive foresight on the industry.

Who wants to save the high expenses on R&D in order to enhance integrated competition.

Whole sellers who has a large local market and wants its own brand



Warranty:

Item

Period

Service

Main Unit

 2 Years Warranty

finish maintainance within 1-15days

after receiving the returned units

Battery

Half Year Warranty

Within Half Year:send you brand new one if it is not

manually damaged;

Beyond Half Year:supply cost-effective renovation

Charger

Half Year Warranty

Within Half Year:send you brand new one if it is not

manually damaged;

Beyond Half Year:supply cost-effective renovation
