TESUNHO Most powerful 10W Walkie Talkie with 3500mAh Battery TH-850PLUS

FOB Reference Price:Get Latest Price
$35.00 - $40.00 / Piece | 2 Piece/Pieces (Min. Order)
Color:
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Fujian, China
Brand Name:
Tesunho
Model Number:
TH-850 Plus
Type:
Handheld
Frequency Range:
VHF 136-174MHz/350-390MHz/ 400-470MHz/440-520MHz
Talk Range:
3-5km(Downtown),6-20km(In the Open Area)
Storage Channel:
99
Dimensions:
120(W)mmx60(L)mmx40mm(D)
Operating Voltage:
7.2V DC ±15%
Battery:
3500mAh(Li-ionbattery)
Weight(With Battery):
about 260g
Antenna Impedance:
50Ω
Channel Spacing:
12.5kHz/25kHz
Working Temperature:
-30 ℃ - +60 ℃
RF Power Output:
10W/5W/0.5W
Selectivity:
55dB
Sensitivity(12Db SINAD):
0.16μV
Operating Bandwidth:
±3.5kHz/3.75kHz
Supply Ability
Supply Ability:
100000 Carton/Cartons per Year
Packaging & Delivery
Packaging Details
Gift Box/PC: 27*25*8cm
Customized CTN According To Order Quantity
Port
xiamen/shenzhen



TESUNHO Most powerful 10W  Walkie Talkie with 3500mAh Battery TH-850PLUS

tesunho_walkie_talkie_main_features



10W/5W/0.5WHI/Low/Ultra-low power programmable

Noice suppression function

Voice function(Chinese/English),Voice ON/OFF

Hight power output(10W/9W)

Timer out timer;Monitor

Standby time:280 hrs

Rain-proof

Built-in Led flashlight

Battery save function

Low batter alarm(Voice prompt)

Keypad lock/unlock

Emergency alarm function(Local/Remote alarm)

50 groups of CTCSS

105 groups of DCS

3500mAh ultra high capacity Li-ion rechargeable battery

Charging directly from the power supply or charging with the cradle.



tesunho_walkie_talkie_specification



Model NO.

TH-850 Plus

General

Frequency Band

VHF

UHF

FrequencyRange

136-174MHz/350-390MHz

400-470MHz/440-520MHz

Channel Capacity

99

Operating Voltage

7.2V DC ±15%

Antenna Impedance

50Ω

Channel Spacing

12.5kHz/25kHz

Working Temperature

-30 °C - +60 °C

Frequency Stability

±2.5 ppm

Size (Without Antenna)

120(W)mmx60(L)mmx40mm(D)

Weight(With Battery)

about 260g

Battery

3500mAh(Li-ionbattery)

Transmitter

RF Power Output

10W/5W/0.5W

Modulation Type

F3E

Modulation Distortion

< 5%(300-3000Hz)

Max Freq Deviation

< 5kHz(1000Hz When 100%)

FM Noise

<=-45dB

Receiver

Sensitivity(12Db SINAD)

0.16μV

Selectivity

55dB

Adjacent Channel Selecivity

>=70dB

Noise Respond

>=60dB

CommunicationRange

3-5km(Downtown),6-20km(In the Open Area)

FM Noise

30dB/40dB

Modulation Type

8K/16KF3E

Audio Power Output

500mW When Distortion Less Than 10%

Audio Distortion

< 5%

Operating Bandwidth

±3.5kHz/3.75kHz

Standby Current

< 12mA

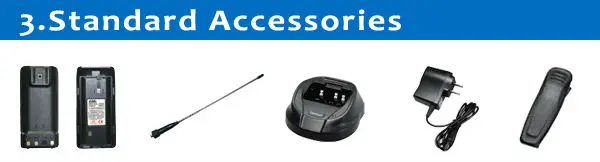

 tesunho_walkie_talkie_standard_accessories

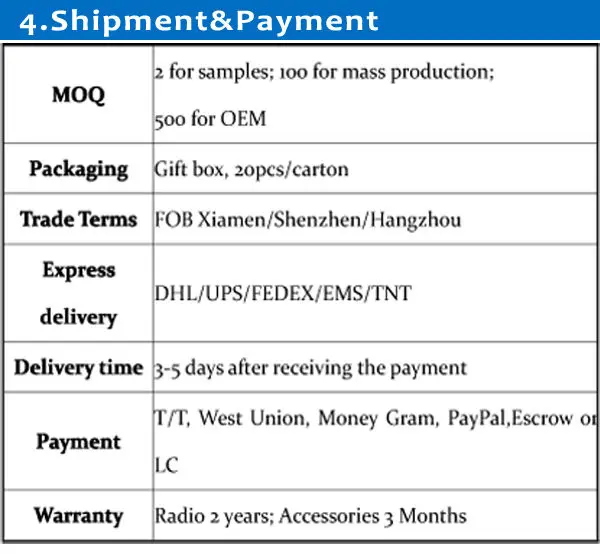

tesunho_walkie_talkie_shipment_payment





tesunho_walkie_talkie_logo



 tesunho_walkie_talkie_our_enterprise



Professional

10 years Electronics Design Experience.

Powerful and reliable R&D team.

Effective

Instant respond to customer's enquiry.

Control design and productive cost,cost-effective.

Trusted

Never reveal customers design.

Exclusivity is guaranteed!

To-be-perfect

Because of all the above.

Target Customer

Who has distinctive foresight on the industry.

Who wants to save the high expenses on R&D in order to enhance integrated competition.

Whole sellers who has a large local market and wants its own brand



Warranty:

Item

Period

Service

Main Unit

 2 Years Warranty

finish maintainance within 1-15days

after receiving the returned units

Battery

Half Year Warranty

Within Half Year:send you brand new one if it is not

manually damaged;

Beyond Half Year:supply cost-effective renovation

Charger

Half Year Warranty

Within Half Year:send you brand new one if it is not

manually damaged;

Beyond Half Year:supply cost-effective renovation

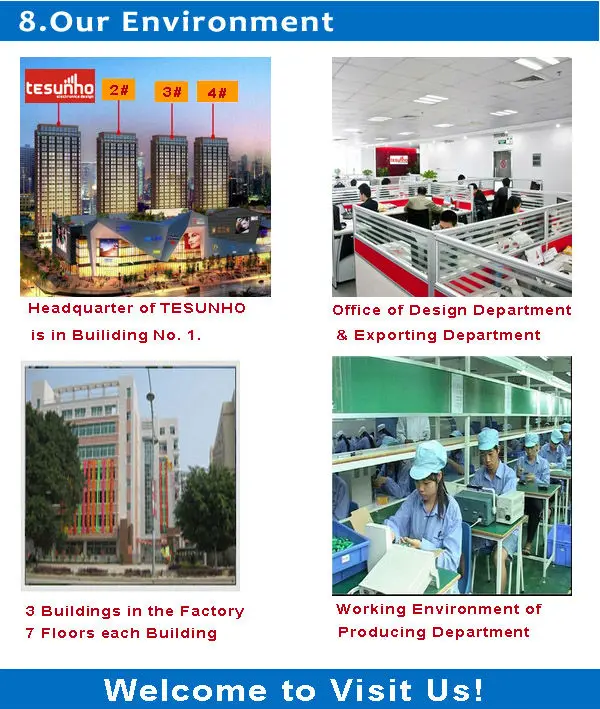

tesunho_walkie_talkie_our_environment

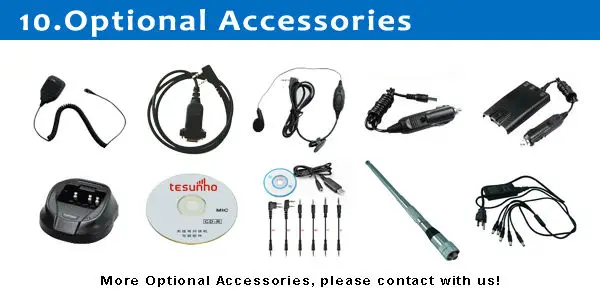

tesunho_walkie_talkie_optional_accessories
